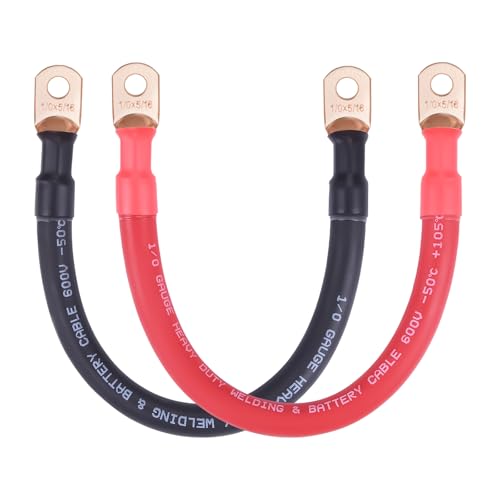

• iGreely 1/0 AWG Battery Cable,1/0 Gauge Welding Battery – Best Value
• Linkstyle 6PCS 2 AWG Battery Cables 12 Inch, 30CM 2 Gauge – Best premium option for flexible wiring connections

What Are the Consequences of Using the Wrong Wire Gauge for an Alternator to Battery Connection?

Overheating is a critical consequence of using the wrong wire gauge, as wires that are not designed for high current can become dangerously hot. This can not only damage the wire itself but also pose a fire risk if the heat ignites nearby materials.

Reduced charging efficiency is another concern, as an under-gauged wire can significantly limit the amount of current delivered to the battery. This means the battery may not charge fully or quickly, impacting its performance and lifespan.

Voltage drop is a phenomenon where the voltage decreases along the length of the wire due to resistance, which can prevent the battery from receiving sufficient voltage for effective charging. This condition can lead to diminished battery capacity and longevity.

Lastly, using an inappropriate wire gauge can cause strain on the alternator and other vehicle electrical components, potentially leading to failures. Insufficient current flow can cause these components to work harder, resulting in costly repairs and replacements over time.

How Can Incorrect Gauge Selection Lead to Alternator Damage?

Incorrect gauge selection can significantly impact the performance and longevity of an alternator by causing overheating, voltage drops, and increased resistance in the wiring.

• Overheating: Using a wire gauge that is too small for the current load can lead to excessive heat generation in the wire. This heat can eventually damage both the wire insulation and the alternator itself, potentially leading to failure.
• Voltage Drop: A wire that is not appropriately sized can cause a voltage drop, which means that the alternator may not effectively charge the battery. This can result in insufficient power to the vehicle’s electrical systems, leading to poor performance and potentially draining the battery.
• Increased Resistance: Smaller gauge wires have higher resistance, which can hinder the flow of electricity from the alternator to the battery. This increased resistance can cause the alternator to work harder, which can lead to premature wear and tear on its components.
• Short Circuits: Incorrect gauge selection can also raise the risk of short circuits if the wire overheats and melts its insulation. This can create a direct short between the alternator and the vehicle frame, leading to catastrophic electrical failure.
• Incompatibility with Connectors: If the wire gauge does not match the connectors used in the system, it can lead to poor connections and arcing. This poor connectivity can decrease charging efficiency and cause intermittent electrical issues.

What Safety Risks Are Associated with Improper Wiring?

Improper wiring can lead to various safety risks, including electrical fires, equipment damage, and personal injury.

• Electrical Fires: Incorrect wiring can create shorts or overload circuits, which may lead to overheating and potentially ignite nearby combustible materials.
• Equipment Damage: Using the wrong gauge wire can cause excessive current draw, damaging the alternator, battery, or other connected components due to insufficient current handling.
• Shock Hazards: Improper insulation or exposed wires can create a risk of electric shock to individuals who come into contact with the wiring, posing a significant safety risk.
• Battery Explosions: Overcharging or short-circuiting the battery due to improper wiring can lead to excessive gas buildup, which may result in battery explosions, causing injuries and property damage.
• Vehicle Malfunction: Faulty wiring can cause erratic behavior in electrical systems, leading to failures in critical vehicle functions such as lights, brakes, or engine performance, compromising safety on the road.

What Factors Determine the Best Wire Gauge for Charging an Alternator to a Battery?

Future Upgrades: Anticipating future electrical upgrades can guide wire gauge selection. If additional devices are expected to draw power from the alternator, selecting a thicker wire initially can save the hassle of replacing it later. This foresight can provide the flexibility needed for expanding the electrical system without compromising performance.

How Does the Length of Wire Impact Gauge Selection?

Current Handling Capacity is a measure of how much current a wire can safely carry without overheating. When selecting a wire gauge, it’s crucial to consider both the length of the wire and the maximum current the alternator will produce. A wire that is too thin can lead to dangerous overheating and potential failure.

Application Specifics are important to consider because different vehicles and charging systems may have varying requirements. For instance, a high-output alternator might necessitate a thicker gauge wire than a standard one, especially when dealing with longer distances between components. Matching the gauge to the specific requirements ensures optimal performance.

Safety Considerations are paramount when wiring automotive electrical systems. Using the correct gauge wire mitigates the risk of fire hazards due to overheating, which can occur if the wire is not rated for the current it is expected to carry. Ensuring proper gauge selection not only enhances performance but also maintains safety in the vehicle’s electrical system.

What Role Do Voltage and Current Ratings Play in Choosing the Right Gauge?

When selecting the best gauge to wire an alternator to a battery for charging, understanding voltage and current ratings is essential.

• Voltage Rating: The voltage rating indicates the maximum voltage the wire can safely handle without insulation breakdown.
• Current Rating (Ampacity): This rating determines the maximum amount of current a wire can carry without overheating, which is crucial for preventing potential fire hazards.
• Wire Gauge (AWG): The American Wire Gauge (AWG) system specifies the diameter of the wire; a lower gauge number means a thicker wire capable of handling more current.
• Length of Wire Run: The distance between the alternator and battery affects the wire gauge needed; longer runs require thicker wires to prevent voltage drop.
• Type of Load: Knowing whether the load is continuous or intermittent helps in choosing the right gauge, as continuous loads often require thicker wire to manage heat buildup.

Voltage Rating: The voltage rating is a critical factor because wires that are not rated for the voltage in your system can suffer insulation failure, leading to short circuits or electrical fires. In automotive applications, the typical system voltage is 12-14.5 volts, so using wire rated for at least this range is necessary for safety and performance.

Current Rating (Ampacity): The ampacity indicates how much current a wire can safely carry without overheating. For example, a 10 AWG wire can typically handle around 30 amps, which is usually sufficient for most alternator-battery connections, ensuring efficient charging without excessive heat generation.

Wire Gauge (AWG): The wire gauge directly influences both current handling and resistance. As the gauge number decreases, the wire diameter increases, allowing it to carry more current. For connecting an alternator to a battery, a common choice is 8 AWG or 6 AWG, depending on the amperage output of the alternator and the length of the wire run.

Length of Wire Run: The longer the wire run, the more resistance and voltage drop occur, which can affect charging efficiency. To mitigate this, thicker wires are recommended for longer distances; for runs over 10 feet, using a lower gauge wire (thicker) is advisable to ensure sufficient voltage reaches the battery.

Type of Load: Understanding whether the load is constant or varies is essential as continuous loads require a wire that can handle the heat generated over time. For example, if the alternator is constantly charging under heavy load conditions, opting for a thicker wire can prevent overheating and potential damage to the wiring system.

What Are the Recommended Wire Gauges for Different Types of Alternators?

The recommended wire gauges for different types of alternators depend on the current output and the distance between the alternator and battery.

• 10 AWG: Suitable for alternators with a maximum output of about 100 amps over short distances, typically up to 10 feet.
• 8 AWG: Recommended for alternators producing between 100 to 150 amps, providing a good balance between conductivity and flexibility.
• 6 AWG: Ideal for high-output alternators of 150 to 200 amps, ensuring minimal voltage drop and efficient charging even over longer runs.
• 4 AWG: Best for systems requiring up to 250 amps, often used in performance or heavy-duty applications where maximum current flow is essential.
• 2 AWG: Used for very high-output alternators exceeding 250 amps, this gauge minimizes resistance and heat, making it suitable for large automotive applications.
• 1/0 AWG: Perfect for extreme setups such as competition vehicles or large RVs, capable of handling up to 400 amps, ensuring optimal charging efficiency.

10 AWG wire is often sufficient for standard alternator applications, as it can handle up to 100 amps, which is common in many vehicles. However, if the distance from the alternator to the battery is longer, it may be advisable to use a thicker wire to prevent voltage drop.

8 AWG wire is a popular choice for those with upgraded charging systems, providing increased current capacity and ensuring that the battery receives adequate charging power without overheating the wire.

For those with alternators producing between 150 and 200 amps, 6 AWG wire is a solid choice, as it minimizes energy loss and keeps the system running efficiently, especially in larger vehicles or those with added electrical accessories.

4 AWG is often utilized in performance applications, as it can support significant current loads while maintaining flexibility for easier routing through tight spaces in vehicles.

2 AWG wire is designed for high-demand systems, ensuring that even under heavy load, the alternator can effectively charge the battery without risk of overheating.

Lastly, 1/0 AWG is reserved for the most demanding setups, ensuring that the electrical system can handle extreme conditions without compromising performance, making it ideal for competition or heavily modified vehicles.

How Do High-Output Alternators Affect Gauge Recommendations?

How Can You Calculate the Ideal Wire Gauge for Your Specific Setup?

Calculating the ideal wire gauge for wiring an alternator to a battery requires considering several factors, including the current load, distance, and acceptable voltage drop.

• Current Load: Determine the maximum current that the alternator will produce, typically measured in amps. Higher current loads require thicker wires to prevent overheating and ensure efficient charging.
• Distance: Measure the distance between the alternator and the battery. Longer distances can lead to voltage drops, so thicker wire may be necessary to maintain efficiency, especially in automotive applications where voltage loss can impact performance.
• Wire Gauge Chart: Use a wire gauge chart to match the current load and distance with the appropriate wire size. The American Wire Gauge (AWG) system provides a standardized way to select wire thickness, with lower numbers indicating thicker wire capable of carrying more current.
• Voltage Drop: Calculate the acceptable voltage drop for your setup, usually around 3% for automotive systems. This helps determine if the selected wire gauge will maintain sufficient voltage at the battery for optimal charging.
• Insulation Type: Consider the insulation type of the wire, which can affect its current-carrying capacity. Wires with higher temperature ratings or specific insulation materials can handle more heat and current, allowing for a safer and more efficient connection.
• Environmental Factors: Account for any environmental factors that might impact wire performance, such as heat exposure, moisture, or vibration. In harsh conditions, using a thicker wire or one with better protective insulation can enhance reliability and longevity.
